More Worry-Free, More Secure, More Fun with STARTFPV
1. The TX15 Max delivers high-performance, reliable control with the STM32 H7 chip, 4GB storage, and MicroSD expansion for smooth EdgeTX operation and fast model switching.
2. Dual-band ELRS with LR1121 Semtech transceiver ensures low-latency, long-range performance, while customizable buttons and built-in gyro functions allow professional-grade control and flexibility.
3. Its premium ergonomic design, 3.5-inch touchscreen, CNC aluminum gimbals, and advanced connectivity features make the transmitter durable, precise, and perfect for FPV racers, professional pilots, and hobbyists.
| Product Specification | |
|---|---|
| Product Name | TX15 Max Radio Controller |
| Brand | RadioMaster |
| Model No. | 16060022 |
|
Processor |
STM32 H7 high-performance chip |
|
Memory & Storage |
4GB internal flash + MicroSD card expansion |
|
Transmission |
Dual-band LR1121 Semtech transceiver, supporting 2.4GHz & 900MHz ExpressLRS (ELRS) |
|
Power & Battery |

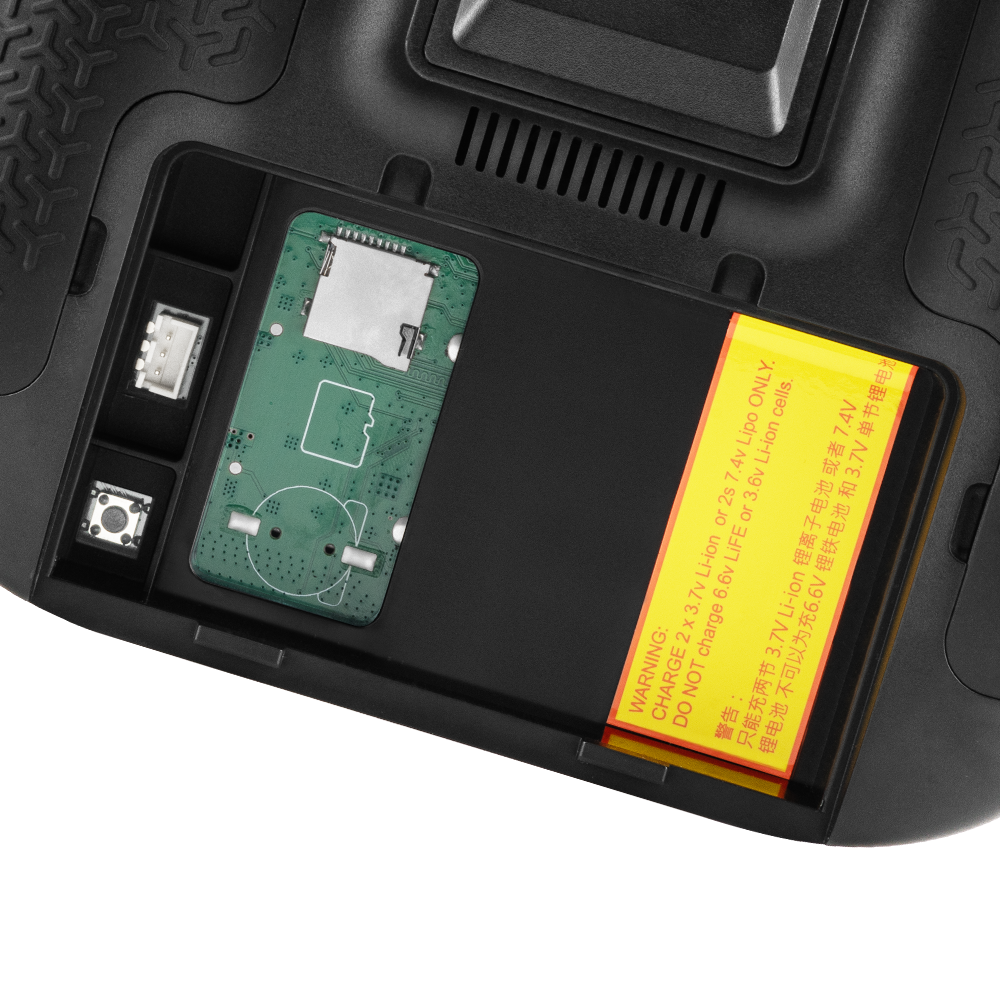

Smart balance battery circuit, USB-C charging |
|
Display |
3.5-inch IPS touchscreen, 262k colors, 600 nits brightness |
|
Gimbals |
AG02 CNC aluminum gimbals (Red, Black, or Gold), Hall sensor precision |
|
Additional Features |
TiltX/TiltY gyro functions, customizable switches, scroll wheel, LUA-controlled RGB LED lighting, advanced cooling system |
The RadioMaster TX15 Max Radio Controller (ELRS / M2) is a high-performance FPV radio designed for professional pilots and enthusiasts. Equipped with a dual-band LR1121 Semtech transceiver supporting 2.4GHz and 900MHz ExpressLRS (ELRS), it delivers long-range, low-latency control for racing drones, freestyle FPV, and long-distance UAV applications. The integrated STM32 H7 processor ensures smooth EdgeTX operation, rapid model switching, and fast script execution, while 4GB of built-in flash storage plus MicroSD expansion provides ample space for models, scripts, sounds, and themes.
With a 3.5-inch IPS touchscreen, AG02 CNC aluminum gimbals, customizable buttons, and LUA-controlled RGB lighting, the TX15 Max offers professional-grade ergonomics and precision. Advanced features such as TiltX/TiltY gyro functions, a smart battery circuit, foldable antennas, and firmware upgradability make it a versatile solution for competitive FPV pilots, drone hobbyists, and the wider UAV industry seeking reliable and high-performance remote control technology.
The RadioMaster TX15 Max is powered by the STM32 H7 high-performance processor, enabling ultra-smooth EdgeTX control, instant model switching, and rapid script execution. With 4GB of internal flash and MicroSD card expansion, pilots have ample space for models, scripts, sounds, and themes. This combination of speed and storage makes it ideal for professional FPV pilots, training programs, and commercial UAV operations.
Equipped with the LR1121 Semtech transceiver, the TX15 Max supports both 2.4GHz and 900MHz ExpressLRS (ELRS), providing low-latency, long-range control with stable signal performance. This ensures reliable operation in competitive racing, freestyle FPV flights, and professional UAV applications.

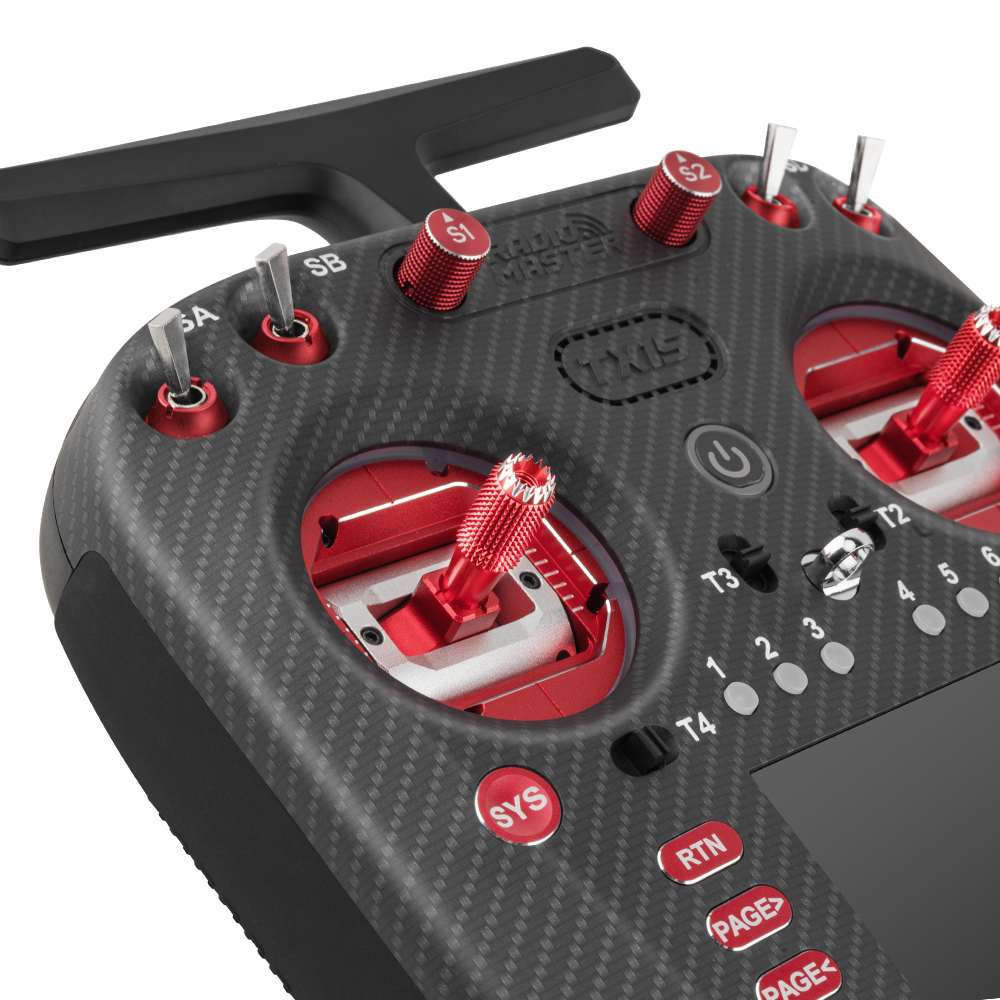

The built-in TiltX/TiltY gyro allows pilots to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of the controller. Extra programmable shoulder buttons offer momentary or latching options, while LUA-controlled RGB lighting provides customizable visual feedback. This level of control flexibility is perfect for advanced pilots and professionals seeking tailored flight configurations.

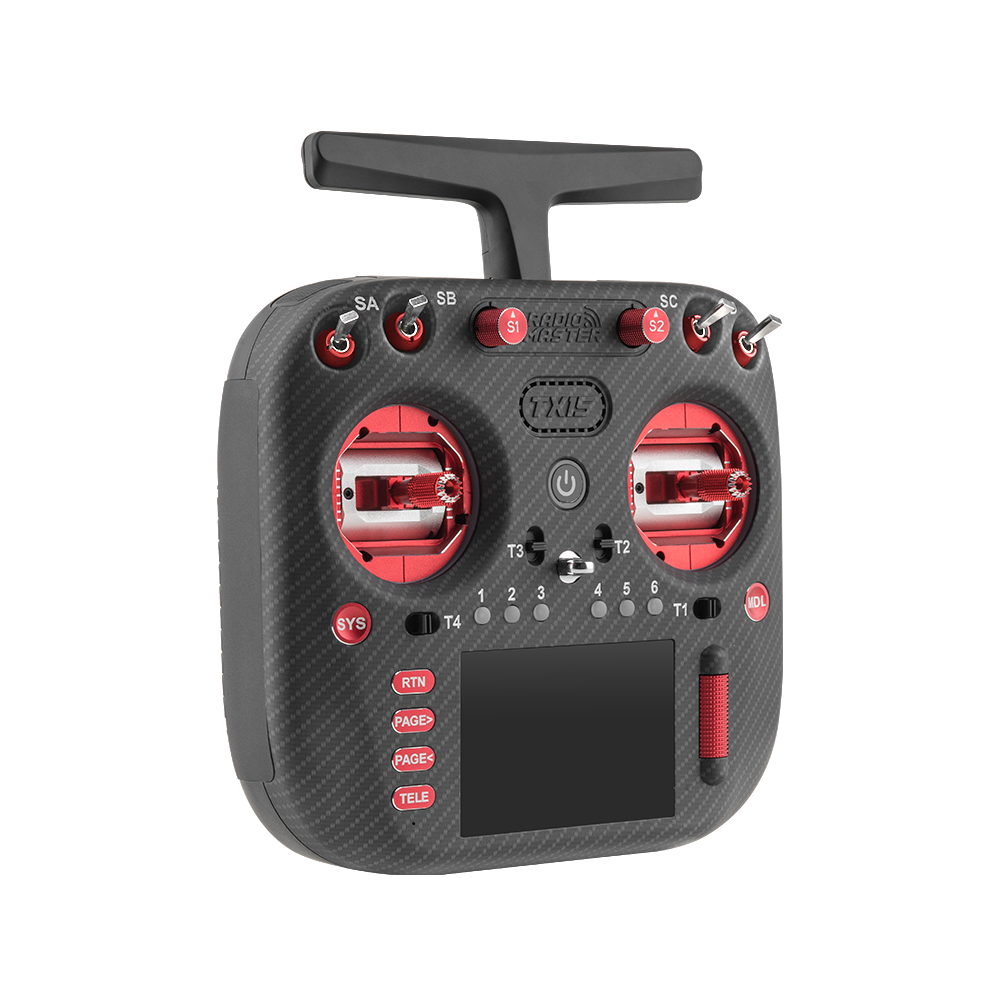

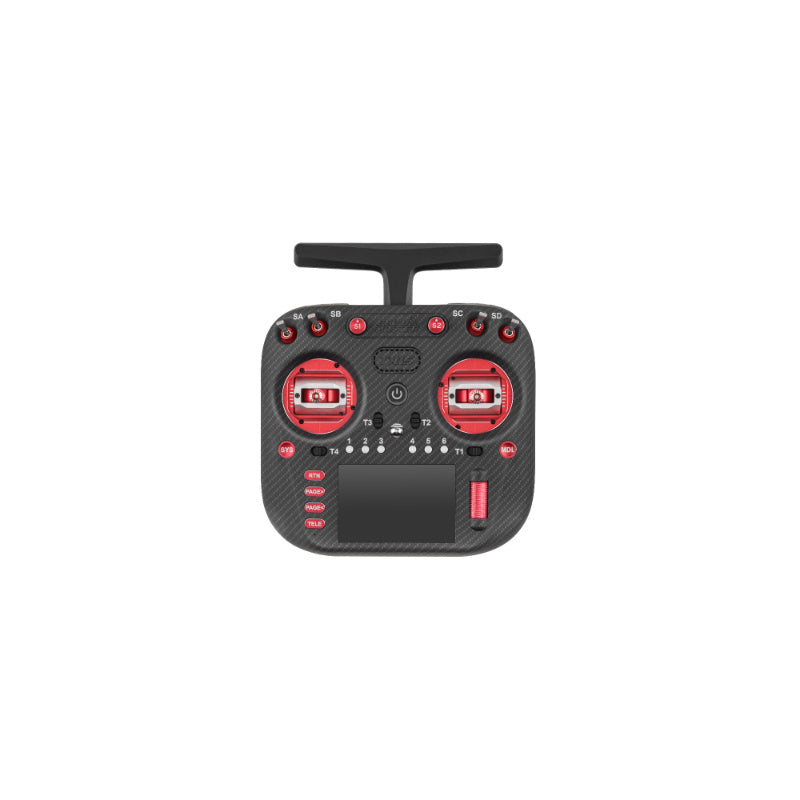

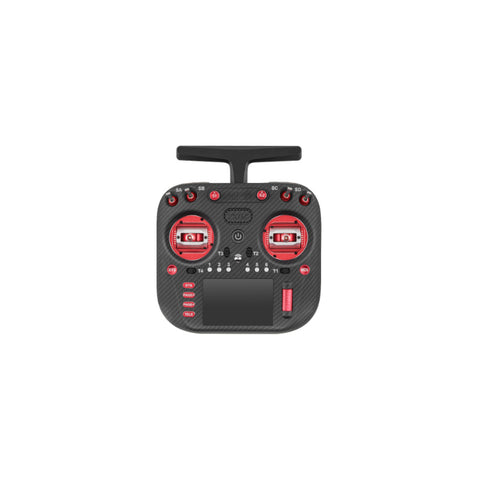

The TX15 Max features a 3.5-inch IPS touchscreen with 262k colors and 600 nits brightness for clear visibility even in sunlight. AG02 CNC aluminum gimbals, aluminum buttons, a scroll wheel, and a carbon-fiber-look case deliver professional-grade feel and precision handling. The integrated design ensures comfort during long flights, competitions, or training sessions.
Designed for serious FPV pilots and commercial users, the TX15 Max includes USB-C charging, firmware updates, SIM connectivity, foldable antennas, and an advanced cooling system. RadioMaster’s expertise ensures that each controller offers dependable performance for racing, training, commercial UAV operations, or resale in B2B channels.
